MATRIX TLMT13F
LED Anti-glare Luminaires

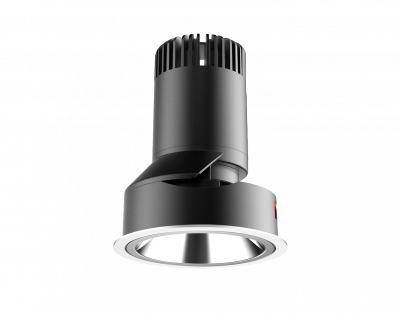

TLMT 13F-3

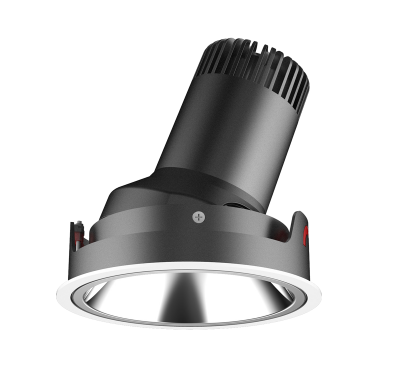

TLMT 13F-4

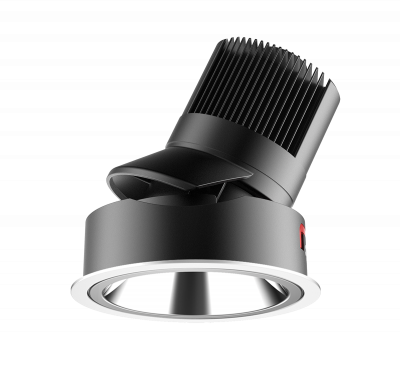

TLMT 13F-4S

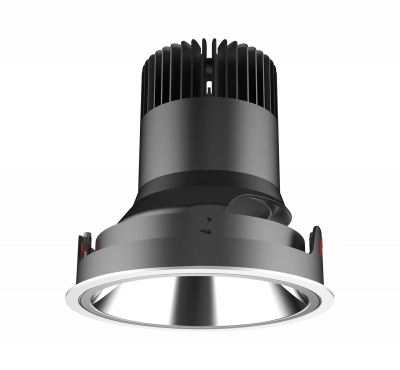

TLMT 13F-6
Deep recessed LED down Light with rust proof anodized aluminium baffle and die cast aluminium fixture with narrow Trim and trimless.High power COB downlight and high brightness with double reflectors design,shares with you the shining light and gorgeous feeling without glare.
TLMT 13F-5
Deep Recessed antiglare COB Downlight with narrow trim
1. High-performance Chip
Outstanding color rendition effect,
meet the lighting demand of upscale
places. 2700K/3000K/4000K,Ra>90
2. Specular Reflector
Use imported specular aluminium of
vacuum electroplating,improving
reflection efficiency 15% to achieve
high efficient energy saving.
3. Cooling System
Die-casting aluminium heat sink,
conducts the heat from the chip
effectively,and ensure the lamp
performance and long lifespan.
4. Variety of Reflectors
3 types of reflector choices
5. Shading Anti-dazzle
Use special designed reflector and
reflection technology, to prevent reflector
secondary reflection and cause glare, getting
accurate light distribution and realizing seeing the light beam without seeing the light source.
Matrix Narrow Trim COB Recessed Downlights
TLMT13F Series

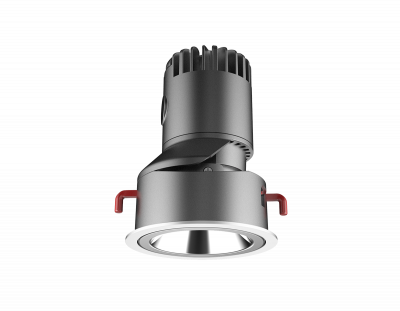

TLMT 13A-3
TLMT 13A-4

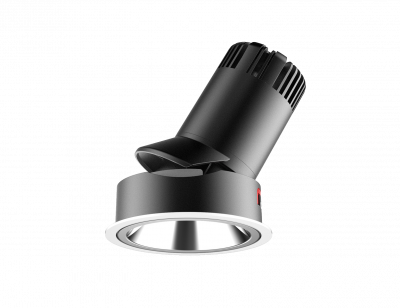

TLMT 13A-4S

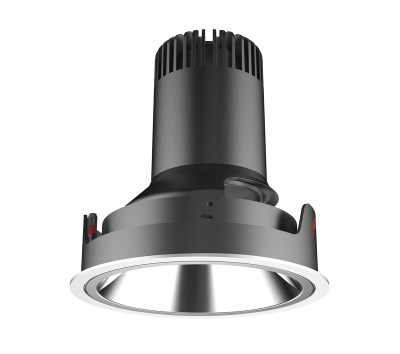

TLMT 13A-6
TLMT 13A-5
Matrix Narrow Trim COB Recessed Downlights
TLMT13A Series
Anti glare narrow trim COB Downlight fixed
1.Selected LED chip with efficient driver, energy-saving with 50000 hours lifespan
2.PC cover with high transmittance,offering uniform and comfortable light
3.Excellent aluminum reflector offers even and better light color,bringing visual comfort
4.Excellent heat dissipation design for good heat dissipation to extend the lifespan of the lamp
5.Housing material:Aluminum with good performance
6.Powder coated surface treatment is durable and not easy to fall off
7.Double reflectors,anti-glare
Power: 10W/15W
LED SOURCE: CITIZEN COB
Input Voltage: AC200-240V
Beam Angle: 10°/15°/24°/36°/60°
CCT: 2700K-4000K
Surface Color: white+ iron gray
CRI: Ra>80/90
Size: 95*125mm
Cutout: Ф85mm
Warranty: 3 years
Dimmable Type: TRIAC/1-10V/DALI
APPLICATION:
Living room, bedroom, kitchen, washroom;
School, university, hospital, hotel;
Conference, meeting room, show room, showcase;
Commercial complexes;
Factory, plant, warehouse, office;
Supermarket, department store
Anti glare narrow trim COB Downlight fixed
1.Selected LED chip with efficient driver, energy-saving with 50000 hours lifespan
2.PC cover with high transmittance,offering uniform and comfortable light
3.Excellent aluminum reflector offers even and better light color,bringing visual comfort
4.Excellent heat dissipation design for good heat dissipation to extend the lifespan of the lamp
5.Housing material:Aluminum with good performance
6.Powder coated surface treatment is durable and not easy to fall off
7.Double reflectors,anti-glare
Power: 15W/20W
LED SOURCE: CITIZEN COB
Input Voltage: AC220-240V
Beam Angle: 10°/15°/24°/36°/60°
CCT: 2700K-4000K
Surface Color: white+ iron gray
CRI: Ra>80/90
Size: 130*165.5mm
Cutout: Ф120mm
Warranty: 3 years
Dimmable Type: TRIAC/1-10V/DALI
APPLICATION:
Living room, bedroom, kitchen, washroom;
School, university, hospital, hotel;
Conference, meeting room, show room, showcase;
Commercial complexes;
Factory, plant, warehouse, office;
Supermarket, department store
Anti glare narrow trim COB Downlight fixed
1.Selected LED chip with efficient driver, energy-saving with 50000 hours lifespan
2.PC cover with high transmittance,offering uniform and comfortable light
3.Excellent aluminum reflector offers even and better light color,bringing visual comfort
4.Excellent heat dissipation design for good heat dissipation to extend the lifespan of the lamp
5.Housing material:Aluminum with good performance
6.Powder coated surface treatment is durable and not easy to fall off
7.Double reflectors,anti-glare
Power: 30W
LED Source: CITIZEN COB
Input Voltage: AC220-240V
Beam Angle: 15°/24°/36°
CCT: 2700K-4000K
Surface Color: White+ Iron gray
CRI: Ra>80/90
Size: 130mm*145mm
Cutout: Ф120mm
Warranty: 3 years
Color of Reflector:Black/Highly Specular Aluminum/Gold
Dimmable Type: TRIAC/1-10V/DALI
APPLICATION:
Living room, bedroom, kitchen, washroom;
School, university, hospital, hotel;
Conference, meeting room, show room, showcase;
Commercial complexes;
Factory, plant, warehouse, office;
Supermarket, department store
Anti glare narrow trim COB Downlight fixed
1.Selected LED chip with efficient driver, energy-saving with 50000 hours lifespan
2.PC cover with high transmittance,offering uniform and comfortable light
3.Excellent aluminum reflector offers even and better light color,bringing visual comfort
4.Excellent heat dissipation design for good heat dissipation to extend the lifespan of the lamp
5.Housing material:Aluminum with good performance
6.Powder coated surface treatment is durable and not easy to fall off
7.Double reflectors,anti-glare
Power: 15W/20W/25W
LED SOURCE: CITIZEN COB
Input Voltage: AC220-240V
Beam Angle: 20°/24°/30°/36°/45°
CCT: 2700K-4000K
Surface Color: White+ Iron gray
CRI: Ra>80/90
Size: 160mm*165mm
Cutout: Ф150mm
Warranty: 3 years
Dimmable Type: TRIAC/1-10V/DALI
Color of Reflector:Black/Highly Specular Aluminum/Gold
APPLICATION:
Living room, bedroom, kitchen, washroom;
School, university, hospital, hotel;
Conference, meeting room, show room, showcase;
Commercial complexes;
Factory, plant, warehouse, office;
Supermarket, department store
Anti glare narrow trim COB Downlight fixed
1.Selected LED chip with efficient driver, energy-saving with 50000 hours lifespan
2.PC cover with high transmittance,offering uniform and comfortable light
3.Excellent aluminum reflector offers even and better light color,bringing visual comfort
4.Excellent heat dissipation design for good heat dissipation to extend the lifespan of the lamp
5.Housing material:Aluminum with good performance
6.Powder coated surface treatment is durable and not easy to fall off
7.Double reflectors,anti-glare
Power: 30W/40W
LED SOURCE: CITIZEN COB
Input Voltage: AC220-240V
Beam Angle: 15°/24°/30°/36°/45°
CCT: 2700K-4000K
Surface Color: white+ iron gray
CRI: Ra>80/90
Size: 180mm*180mm
Cutout: Ф170mm
Warranty: 3 years
Dimmable Type: TRIAC/1-10V/DALI
Color of Reflector：Black/Highly Specular Aluminum/Gold
APPLICATION:
Living room, bedroom, kitchen, washroom;
School, university, hospital, hotel;
Conference, meeting room, show room, showcase;
Commercial complexes;
Factory, plant, warehouse, office;
Supermarket, department store

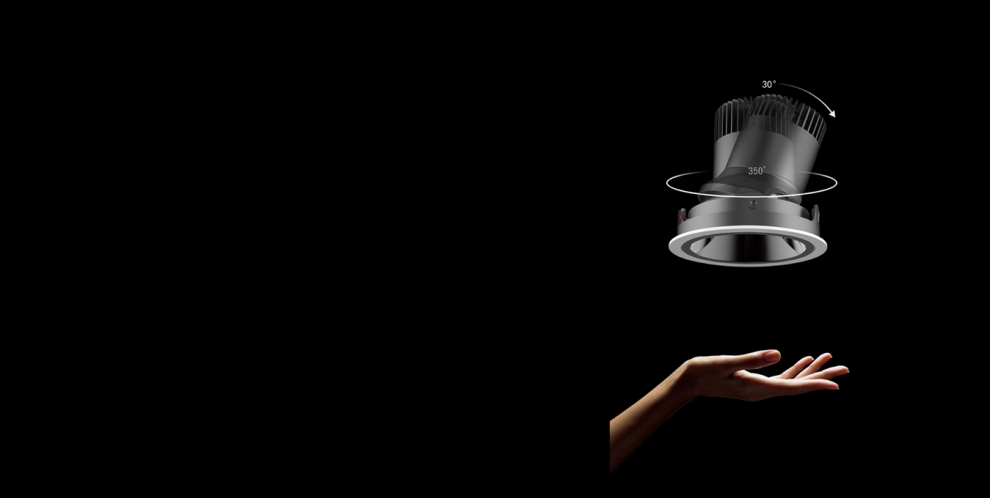

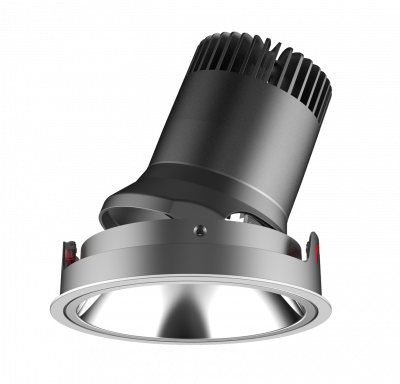

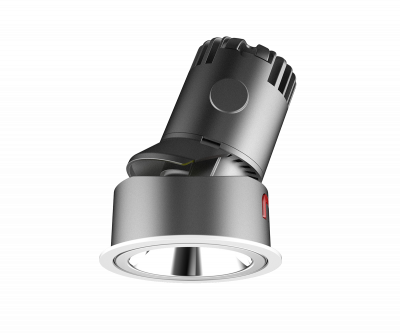

Anti glare narrow trim COB Downlight Adjustable
1.Selected LED chip with efficient driver, energy-saving with 50000 hours lifespan
2.PC cover with high transmittance,offering uniform and comfortable light
3.Excellent aluminum reflector offers even and better light color,bringing visual comfort
4.Excellent heat dissipation design for good heat dissipation to extend the lifespan of the lamp
5.Housing material:Aluminum with good performance
6.Powder coated surface treatment is durable and not easy to fall off
7.Double reflectors,anti-glare
Power: 10W/15W
LED SOURCE: CITIZEN COB
Input Voltage: AC200-240V
Beam Angle: 10°/15°/24°/36°/60°
CCT: 2700K-4000K
Surface Color: white+ iron gray
CRI: Ra>80/90
Size: 95*125mm
Cutout: Ф85mm
Warranty: 3 years
Dimmable Type: TRIAC/1-10V/DALI
APPLICATION:
Living room, bedroom, kitchen, washroom;
School, university, hospital, hotel;
Conference, meeting room, show room, showcase;
Commercial complexes;
Factory, plant, warehouse, office;
Supermarket, department store
Anti glare narrow trim COB Downlight Adjustable
1.Selected LED chip with efficient driver, energy-saving with 50000 hours lifespan
2.PC cover with high transmittance,offering uniform and comfortable light
3.Excellent aluminum reflector offers even and better light color,bringing visual comfort
4.Excellent heat dissipation design for good heat dissipation to extend the lifespan of the lamp
5.Housing material:Aluminum with good performance
6.Powder coated surface treatment is durable and not easy to fall off
7.Double reflectors,anti-glare
Power:10W/15W
LED SOURCE:CITIZEN COB
Input Voltage:AC200-240V
Beam Angle: 20°/24°/30°/36°/45°
CCT:2700K-4000K
SurfaceColor:white+ iron gray
CRI:Ra>80/90
Size:130*165.5mm
Cutout:Ф120mm
Warranty: 3 years
Dimmable Type: TRIAC/1-10V/DALI
APPLICATION:
Living room, bedroom, kitchen, washroom;
School, university, hospital, hotel;
Conference, meeting room, show room, showcase;
Commercial complexes;
Factory, plant, warehouse, office;
Supermarket, department store
Anti glare narrow trim COB Downlight Adjustable
1.Selected LED chip with efficient driver, energy-saving with 50000 hours lifespan
2.PC cover with high transmittance,offering uniform and comfortable light
3.Excellent aluminum reflector offers even and better light color,bringing visual comfort
4.Excellent heat dissipation design for good heat dissipation to extend the lifespan of the lamp
5.Housing material:Aluminum with good performance
6.Powder coated surface treatment is durable and not easy to fall off
7.Double reflectors,anti-glare
Power: 30W
LED Source: CITIZEN COB
Input Voltage: AC220-240V
Beam Angle: 15°/24°/36°
CCT: 2700K-4000K
Surface Color: White+ Iron gray
CRI: Ra>80/90
Size: 130mm*145mm
Cutout: Ф120mm
Warranty: 3 years
Color of Reflector:Black/Highly Specular Aluminum/Gold
Dimmable Type: TRIAC/1-10V/DALI
APPLICATION:
Living room, bedroom, kitchen, washroom;
School, university, hospital, hotel;
Conference, meeting room, show room, showcase;
Commercial complexes;
Factory, plant, warehouse, office;
Supermarket, department store
Anti glare narrow trim COB Downlight Adjustable
1.Selected LED chip with efficient driver, energy-saving with 50000 hours lifespan
2.PC cover with high transmittance,offering uniform and comfortable light
3.Excellent aluminum reflector offers even and better light color,bringing visual comfort
4.Excellent heat dissipation design for good heat dissipation to extend the lifespan of the lamp
5.Housing material:Aluminum with good performance
6.Powder coated surface treatment is durable and not easy to fall off
7.Double reflectors,anti-glare
Power: 15W/20W/25W
LED SOURCE: CITIZEN COB
Input Voltage: AC220-240V
Beam Angle: 20°/24°/30°/36°/45°
CCT: 2700K-4000K
Surface Color: White+ Iron gray
CRI: Ra>80/90
Size: 160mm*165mm
Cutout: Ф150mm
Warranty: 3 years
Dimmable Type: TRIAC/1-10V/DALI
Color of Reflector:Black/Highly Specular Aluminum/Gold
APPLICATION:
Living room, bedroom, kitchen, washroom;
School, university, hospital, hotel;
Conference, meeting room, show room, showcase;
Commercial complexes;
Factory, plant, warehouse, office;
Supermarket, department store
Anti glare narrow trim COB Downlight Adjustable
1.Selected LED chip with efficient driver, energy-saving with 50000 hours lifespan
2.PC cover with high transmittance,offering uniform and comfortable light
3.Excellent aluminum reflector offers even and better light color,bringing visual comfort
4.Excellent heat dissipation design for good heat dissipation to extend the lifespan of the lamp
5.Housing material:Aluminum with good performance
6.Powder coated surface treatment is durable and not easy to fall off
7.Double reflectors,anti-glare
Power: 30W/40W
LED SOURCE: CITIZEN COB
Input Voltage: AC220-240V
Beam Angle: 15°/24°/30°/36°/45°
CCT: 2700K-4000K
Surface Color: white+ iron gray
CRI: Ra>80/90
Size: 180mm*180mm
Cutout: Ф170mm
Warranty: 3 years
Dimmable Type: TRIAC/1-10V/DALI
Color of Reflector：Black/Highly Specular Aluminum/Gold
APPLICATION:
Living room, bedroom, kitchen, washroom;
School, university, hospital, hotel;
Conference, meeting room, show room, showcase;
Commercial complexes;
Factory, plant, warehouse, office;
Supermarket, department store
