TLMT 36-2A

TLMT 36-2AT

TLMT 36-3A

TLMT 36-3ASC

Deep recessed LED  down Light with rust proof anodized aluminium baffle and die cast aluminium fixture with narrow Trim and trimless.High power COB downlight and high brightness with double reflectors design,shares with you the shining light and gorgeous feeling without glare.

For different applications TLMT36 has 4 options. Round and Square, Trimless and NarrowTrim. Designers can choose power, beam angle, CCT, CRI chip on board light source.Varieties of accessories for unique design - honey-comb filter, cross-grille, tensile lens, color filter, etc.All these flexible modules are easily to check and replaced, which will save money and energy on the after-sales maintainance.

TLMT 36-3AT

ATLMT 36-3ATSC

TLMT 36-3ATSQ-S

TLMT 36-3ASQ-S

TLMT 36-3ATSQ-H

Deep Recessed narrow trim anti-glare COB Spotlight

1. High-performance Chip
Outstanding color rendition effect,
meet the lighting demand of upscale
places. 2700K/3000K/4000K,Ra>90

2. Specular Reflector
Use imported specular aluminium of
vacuum electroplating,improving
reflection efficiency 15% to achieve
high efficient energy saving.



3. Cooling System
Die-casting aluminium heat sink,
conducts the heat from the chip
effectively,and ensure the lamp
performance and long lifespan.



4. Variety of Reflectors

       3 types of reflector choices


5. Shading Anti-dazzle
Use special designed reflector and
reflection technology, to prevent reflector
secondary reflection and cause glare, getting
accurate light distribution and realizing seeing the light beam without seeing the light source.


MATRIX TLMT36

Adjustable
gallery/untitled-1

TLMT 36-2A

Product Features:
1.Selected LED chip with efficient driver, energy-saving with 50000 hours lifespan
2.PC cover with high transmittance,offering uniform and comfortable light
3.Excellent aluminum reflector offers even and better light color,bringing visual comfort
4.Excellent heat dissipation design for good heat dissipation to extend the lifespan of the lamp
5.Housing material:Aluminum with good performance
6.Powder coated surface treatment is durable and not easy to fall off
7.IP54,suitable for indoor housing

APPLICATION:
Living room, bedroom, kitchen, washroom;
School, university, hospital, hotel;
Conference, meeting room, show room, showcase;
Commercial complexes;
Factory, plant, warehouse, office;
Supermarket, department store.

Power:3W / 5W
LED Source: Luminus
Input Voltage: AC220-240V
Beam Angle:15°/18°/24°/36°
CCT: 2700K-4000K
Surface Color: White+ Iron gray
CRI: Ra>90
Size: 56mm*86mm
Cutout: Ф50mm
Warranty: 3 years
Type: Adjustable

TLMT 36-3A-S / 3A-H

Product Features:
1.Selected LED chip with efficient driver, energy-saving with 50000 hours lifespan
2.PC cover with high transmittance,offering uniform and comfortable light
3.Excellent aluminum reflector offers even and better light color,bringing visual comfort
4.Excellent heat dissipation design for good heat dissipation to extend the lifespan of the lamp
5.Housing material:Aluminum with good performance
6.Powder coated surface treatment is durable and not easy to fall off
7.IP54,suitable for indoor housing

APPLICATION:
Living room, bedroom, kitchen, washroom;
School, university, hospital, hotel;
Conference, meeting room, show room, showcase;
Commercial complexes;
Factory, plant, warehouse, office;
Supermarket, department store.

Power:5W / 8W/ / 12W
LED Source: Luminus
Input Voltage: AC220-240V
Beam Angle:15°/18°/24°/36°
CCT: 2700K-4000K
Surface Color: White+ Iron gray
CRI: Ra>90
Size: 85mm*90mm / 85mm*110mm
Cutout: Ф75mm
Warranty: 3 years
Type: Adjustable

TLMT 36-2AT

Product Features:
1.Selected LED chip with efficient driver, energy-saving with 50000 hours lifespan
2.PC cover with high transmittance,offering uniform and comfortable light
3.Excellent aluminum reflector offers even and better light color,bringing visual comfort
4.Excellent heat dissipation design for good heat dissipation to extend the lifespan of the lamp
5.Housing material:Aluminum with good performance
6.Powder coated surface treatment is durable and not easy to fall off
7.IP54,suitable for indoor housing

Power:3W / 5W /
LED Source: Luminus
Input Voltage: AC220-240V
Beam Angle:15°/18°/24°/36°
CCT: 2700K-4000K
Surface Color: White+ Iron gray
CRI: Ra>90
Size: 49.5mm*78mm
Cutout: Ф55mm
Warranty: 3 years
Type: Adjustable

APPLICATION:
Living room, bedroom, kitchen, washroom;
School, university, hospital, hotel;
Conference, meeting room, show room, showcase;
Commercial complexes;
Factory, plant, warehouse, office;
Supermarket, department store.

TLMT 36-3AT-S / 3AT-H

Product Features:
1.Selected LED chip with efficient driver, energy-saving with 50000 hours lifespan
2.PC cover with high transmittance,offering uniform and comfortable light
3.Excellent aluminum reflector offers even and better light color,bringing visual comfort
4.Excellent heat dissipation design for good heat dissipation to extend the lifespan of the lamp
5.Housing material:Aluminum with good performance
6.Powder coated surface treatment is durable and not easy to fall off
7.IP54,suitable for indoor housing

Power:5W / 8W / 12W
LED Source: Luminus
Input Voltage: AC220-240V
Beam Angle:15°/18°/24°/36°
CCT: 2700K-4000K
Surface Color: White+ Iron gray
CRI: Ra>90
Size: 74mm*90mm / 74mm*110mm
Cutout: Ф85mm
Warranty: 3 years
Type: Adjustable

APPLICATION:
Living room, bedroom, kitchen, washroom;
School, university, hospital, hotel;
Conference, meeting room, show room, showcase;
Commercial complexes;
Factory, plant, warehouse, office;
Supermarket, department store.

TLMT 36-3ASQ-S

Product Features:
1.Selected LED chip with efficient driver, energy-saving with 50000 hours lifespan
2.PC cover with high transmittance,offering uniform and comfortable light
3.Excellent aluminum reflector offers even and better light color,bringing visual comfort
4.Excellent heat dissipation design for good heat dissipation to extend the lifespan of the lamp
5.Housing material:Aluminum with good performance
6.Powder coated surface treatment is durable and not easy to fall off
7.IP54,suitable for indoor housing

Power:5W / 8W
LED Source: Luminus
Input Voltage: AC220-240V
Beam Angle:11°/18°/24°/36°/50°
CCT: 2700K-4000K
Surface Color: White+ Iron gray
CRI: Ra>90
Size: 85mm*90mm
Cutout: Ф75mm*75mm
Warranty: 3 years
Type: Adjustable

APPLICATION:
Living room, bedroom, kitchen, washroom;
School, university, hospital, hotel;
Conference, meeting room, show room, showcase;
Commercial complexes;
Factory, plant, warehouse, office;
Supermarket, department store.

TLMT 36-3ASQ-H

Product Features:
1.Selected LED chip with efficient driver, energy-saving with 50000 hours lifespan
2.PC cover with high transmittance,offering uniform and comfortable light
3.Excellent aluminum reflector offers even and better light color,bringing visual comfort
4.Excellent heat dissipation design for good heat dissipation to extend the lifespan of the lamp
5.Housing material:Aluminum with good performance
6.Powder coated surface treatment is durable and not easy to fall off
7.IP54,suitable for indoor housing

Power:8W / 12W
LED Source: Luminus
Input Voltage: AC220-240V
Beam Angle:11°/18°/24°/36°/50°
CCT: 2700K-4000K
Surface Color: White+ Iron gray
CRI: Ra>90
Size: 85mm*110mm
Cutout: Ф75mm*75mm
Warranty: 3 years
Type: Adjustable

APPLICATION:
Living room, bedroom, kitchen, washroom;
School, university, hospital, hotel;
Conference, meeting room, show room, showcase;
Commercial complexes;
Factory, plant, warehouse, office;
Supermarket, department store.

gallery/matrix tlmt 36a
gallery/matrix tlmt 36a
Anti glare narrow trim spotlight ADJ

TLMT 36-3ASQ-H

Anti glare narrow trim spotlight ADJ
gallery/matrix tlmt 36a
Anti glare trimless spotlight ADJ
gallery/matrix tlmt 36-2at
gallery/matrix tlmt 36-3at
Anti glare trimless spotlight ADJ
Anti glare narrow trim spotlight ADJ
gallery/matrix narrow trim square tlmt 36-3atsq to-led lights inc
gallery/matrix narrow trim square tlmt 36-3atsq to-led lights inc
Anti glare narrow trim spotlight ADJ

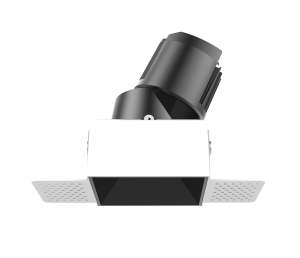

TLMT 36-3ATSQ-S

Anti glare trimless square spotlight

Product Features:
1.Selected LED chip with efficient driver, energy-saving with 50000 hours lifespan
2.PC cover with high transmittance,offering uniform and comfortable light
3.Excellent aluminum reflector offers even and better light color,bringing visual comfort
4.Excellent heat dissipation design for good heat dissipation to extend the lifespan of the lamp
5.Housing material:Aluminum with good performance
6.Powder coated surface treatment is durable and not easy to fall off
7.IP54,suitable for indoor housing

Power:5W / 8W
LED Source: Luminus
Input Voltage: AC220-240V
Beam Angle:11°/18°/24°/36°/50°
CCT: 2700K-4000K
Surface Color: White+ Iron gray
CRI: Ra>90
Size: 85mm*90mm
Cutout: Ф75mm*75mm
Warranty: 3 years
Type: Adjustable

APPLICATION:
Living room, bedroom, kitchen, washroom;
School, university, hospital, hotel;
Conference, meeting room, show room, showcase;
Commercial complexes;
Factory, plant, warehouse, office;
Supermarket, department store.

gallery/matrix trimless tlmt 36-3atsq-s-h to-led lights inc

TLMT 36-3ATSQ-H

Anti glare trimless square spotlight

Product Features:
1.Selected LED chip with efficient driver, energy-saving with 50000 hours lifespan
2.PC cover with high transmittance,offering uniform and comfortable light
3.Excellent aluminum reflector offers even and better light color,bringing visual comfort
4.Excellent heat dissipation design for good heat dissipation to extend the lifespan of the lamp
5.Housing material:Aluminum with good performance
6.Powder coated surface treatment is durable and not easy to fall off
7.IP54,suitable for indoor housing

Power:8W / 12W
LED Source: Luminus
Input Voltage: AC220-240V
Beam Angle:11°/18°/24°/36°/50°
CCT: 2700K-4000K
Surface Color: White+ Iron gray
CRI: Ra>90
Size: 85mm*110mm
Cutout: Ф75mm*75mm
Warranty: 3 years
Type: Adjustable

APPLICATION:
Living room, bedroom, kitchen, washroom;
School, university, hospital, hotel;
Conference, meeting room, show room, showcase;
Commercial complexes;
Factory, plant, warehouse, office;
Supermarket, department store.

gallery/matrix trimless tlmt 36-3atsq-s-h to-led lights inc
