MATRIX TLMTMG10
LED Multi Directional Luminaires
TLMTMG10-1-3
TLMTMG10-2-3
TLMTMG10-3-3
Multiple versions embrace the concept of innovation with a good Performance,uniqueness, durability and versalitity;highlighting the charcteristics of To-Led grille light.
Antiglare Multidirectional Grille Light
With Narrow Trim and Trimless
1. High-performance Chip
By using a high quality and high
efficiency led chip with Ra>90
2. Cooling System
The patented heat sink with "breath
design" ensures ample heat dissipation
3. Adjusting Shaft Design
350° horizontal rotation, 25° rotation
from the left to the right, accurate
adjusted angle.
4. Anti-glare
Anti-glare designed lamp body, shading angle ≥30°
5. Easy installation
The installation clips protect the ceiling and offer a convenient and easy installation.
Matrix Narrow Trim COB Multi Directional Grille Light
TLMTMGT10-1-3
TLMTMGT10-2-3
TLMTMGT10-3-3

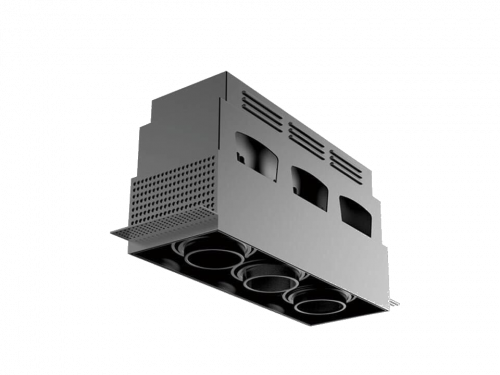

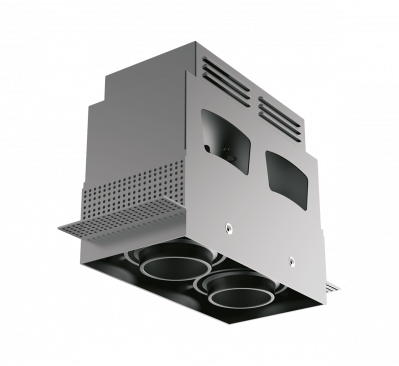

Matrix Trimless COB Multi Directional Grille Light
TLMTMG10-1-4
TLMTMG10-1-4H
TLMTMG10-2-4
TLMTMG10-2-4H
TLMTMG10-3-4
TLMTMG10-3-4H
TLMTMGT10-1-4
TLMTMGT10-1-4H
TLMTMGT10-3-4
TLMTMGT10-3-4H
TLMTMGT10-2-4
TLMTMGT10-2-4H

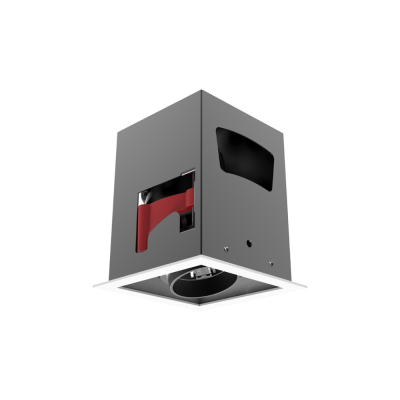

Narrow Trim Multi Directional Grille Light 10W
1.Selected LED chip with efficient driver, energy-saving with 50000 hours lifespan
2.PC cover with high transmittance,offering uniform and comfortable light
3.Excellent aluminum reflector offers even and better light color,bringing visual comfort
4.Excellent heat dissipation design for good heat dissipation to extend the lifespan of the lamp
5.Housing material:Aluminum with good performance
6.Powder coated surface treatment is durable and not easy to fall off
7.Narrow trim and window design
Power:10W
LED Source:Philips COB
Input Voltage:AC220-240V
Beam Angle:15°/24°/30°/36°
CCT: 2700K-5000K
Surface Color:White+iron gray/Black+Iron gray/Iron gray
CRI: Ra>80/90
Size:93mm*93mm*135mm
Cutout:82mm*82mm
Warranty:3years
Dimmable Type:TRIAC/1-10V/DALI
APPLICATION:
Living room, bedroom, kitchen, washroom;
School, university, hospital, hotel;
Conference, meeting room, show room, showcase;
Commercial complexes;
Factory, plant, warehouse, office;
Supermarket, department store.
Narrow Trim Multi Directional Grille Light 15W / 20W
1.Selected LED chip with efficient driver, energy-saving with 50000 hours lifespan
2.PC cover with high transmittance,offering uniform and comfortable light
3.Excellent aluminum reflector offers even and better light color,bringing visual comfort
4.Excellent heat dissipation design for good heat dissipation to extend the lifespan of the lamp
5.Housing material:Aluminum with good performance
6.Powder coated surface treatment is durable and not easy to fall off
7.Narrow trim and window design
Power:15W/20W
LED Source:Philips COB
Input Voltage:AC220-240V
Beam Angle:15°/24°/30°/36°/60°
CCT: 2700K-5000K
Surface Color:White+lron gray/Black+lron gray/Iron gray
CRI: Ra>80/90
Size:123mm*123mm*178mm
Cutout:112mm*112mm
Warranty:3years
Dimmable Type:TRIAC/1-10V/DALI
APPLICATION:
Living room, bedroom, kitchen, washroom;
School, university, hospital, hotel;
Conference, meeting room, show room, showcase;
Commercial complexes;
Factory, plant, warehouse, office;
Supermarket, department store.
Narrow Trim Multi Directional Grille Light 30W
1.Selected LED chip with efficient driver, energy-saving with 50000 hours lifespan
2.PC cover with high transmittance,offering uniform and comfortable light
3.Excellent aluminum reflector offers even and better light color,bringing visual comfort
4.Excellent heat dissipation design for good heat dissipation to extend the lifespan of the lamp
5.Housing material:Aluminum with good performance
6.Powder coated surface treatment is durable and not easy to fall off
7.Narrow trim and window design
Power:30W
LED SOURCE:Philips COB
Input Voltage:AC220-240V
Beam Angle:15°/20°/30°/36°/45°
CCT:2700K-5000K
Surface Color:White+Iron gray/Black+Iron gray/Iron gray
CRI:Ra>80/90
Size:123mm*123mm*178mm
Cutout:Ф112mm*112mm
Warranty:3 years
Dimmable Type:TRIAC/1-10V/DALI
APPLICATION:
Living room, bedroom, kitchen, washroom;
School, university, hospital, hotel;
Conference, meeting room, show room, showcase;
Commercial complexes;
Factory, plant, warehouse, office;
Supermarket, department store.

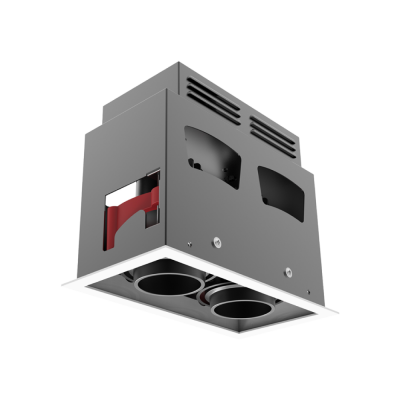

Narrow Trim Multi Directional Grille Light 2X10W
1.Selected LED chip with efficient driver, energy-saving with 50000 hours lifespan
2.PC cover with high transmittance,offering uniform and comfortable light
3.Excellent aluminum reflector offers even and better light color,bringing visual comfort
4.Excellent heat dissipation design for good heat dissipation to extend the lifespan of the lamp
5.Housing material:Aluminum with good performance
6.Powder coated surface treatment is durable and not easy to fall off
7.Narrow trim and window design
Power:20W
LED Source:Philips COB
Input Voltage:AC220-240V
Beam Angle:10°/15°/24°/30°/36°
CCT: 2700K-5000K
Surface Color:White+Iron gray/Black+Iron gray/Iron gray
CRI: Ra>80/90
Size:173mm*93mm*135mm
Cutout:165mm*85mm
Warranty:3years
Dimmable Type:TRIAC
APPLICATION:
Living room, bedroom, kitchen, washroom;
School, university, hospital, hotel;
Conference, meeting room, show room, showcase;
Commercial complexes;
Factory, plant, warehouse, office;
Supermarket, department store.
Narrow Trim Multi Directional Grille Light 2X15W / 20W
1.Selected LED chip with efficient driver, energy-saving with 50000 hours lifespan
2.PC cover with high transmittance,offering uniform and comfortable light
3.Excellent aluminum reflector offers even and better light color,bringing visual comfort
4.Excellent heat dissipation design for good heat dissipation to extend the lifespan of the lamp
5.Housing material:Aluminum with good performance
6.Powder coated surface treatment is durable and not easy to fall off
7.Narrow trim and window design
Power:30W/40W
LED SOURCE:Philips COB
Input Voltage:AC200-240V
Beam Angle:15°/24°/30°/36°/60°
CCT:2700K-5000K
Surface Color:White+Iron gray/Black+Iron gray/Iron gray
CRI:Ra>80/90
Size:232mm*123mm*178mm
Cutout:Ф222mm*112mm
Warranty:3 years
Dimmable Type:TRIAC
APPLICATION:
Living room, bedroom, kitchen, washroom;
School, university, hospital, hotel;
Conference, meeting room, show room, showcase;
Commercial complexes;
Factory, plant, warehouse, office;
Supermarket, department store.
Narrow Trim Multi Directional Grille Light 2X30W
1.Selected LED chip with efficient driver, energy-saving with 50000 hours lifespan
2.PC cover with high transmittance,offering uniform and comfortable light
3.Excellent aluminum reflector offers even and better light color,bringing visual comfort
4.Excellent heat dissipation design for good heat dissipation to extend the lifespan of the lamp
5.Housing material:Aluminum with good performance
6.Powder coated surface treatment is durable and not easy to fall off
7.Narrow trim and window design
Power:60W
LED SOURCE:Philips COB
Input Voltage:AC220-240V
Beam Angle:15°/20°/30°/36°/45°
CCT:2700K-5000K
Surface Color:White+Iron gray/Black+Iron gray/Iron gray
CRI:Ra>80/90
Size:232mm*123mm*178mm
Cutout:Ф222mm*112mm
Warranty:3 years
Dimmable Type:TRIAC
APPLICATION:
Living room, bedroom, kitchen, washroom;
School, university, hospital, hotel;
Conference, meeting room, show room, showcase;
Commercial complexes;
Factory, plant, warehouse, office;
Supermarket, department store.
Narrow Trim Multi Directional Grille Light 3X10W
1.Selected LED chip with efficient driver, energy-saving with 50000 hours lifespan
2.PC cover with high transmittance,offering uniform and comfortable light
3.Excellent aluminum reflector offers even and better light color,bringing visual comfort
4.Excellent heat dissipation design for good heat dissipation to extend the lifespan of the lamp
5.Housing material:Aluminum with good performance
6.Powder coated surface treatment is durable and not easy to fall off
7.Narrow trim and window design
Power:30W
LED SOURCE:Philips COB
Input Voltage:AC220-240V
Beam Angle:15°/24°/30°/36°
CCT:2700K-5000K
Surface Color:White+Iron gray/Black+Iron gray/Iron gray
CRI:Ra>80/90
Size:252mm*93mm*135mm
Cutout:Ф240mm*82mm
Warranty:3 years
Dimmable Type:TRIAC
APPLICATION:
Living room, bedroom, kitchen, washroom;
School, university, hospital, hotel;
Conference, meeting room, show room, showcase;
Commercial complexes;
Factory, plant, warehouse, office;
Supermarket, department store.

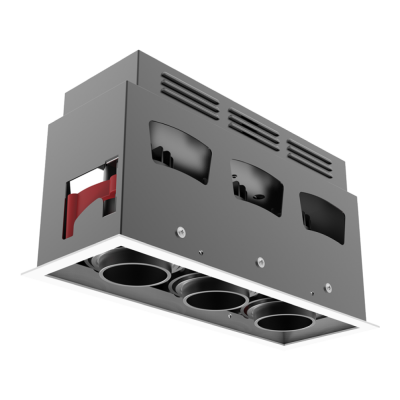

Narrow Trim Multi Directional Grille Light 3X15W / 20W
1.Selected LED chip with efficient driver, energy-saving with 50000 hours lifespan
2.PC cover with high transmittance,offering uniform and comfortable light
3.Excellent aluminum reflector offers even and better light color,bringing visual comfort
4.Excellent heat dissipation design for good heat dissipation to extend the lifespan of the lamp
5.Housing material:Aluminum with good performance
6.Powder coated surface treatment is durable and not easy to fall off
7.Narrow trim and window design
Power:45W/60W
LED SOURCE:Philips COB
Input Voltage:AC220-240V
Beam Angle:15°/24°/30°/36°/60°
CCT:2700K-5000K
Surface Color:White+Iron gray/Black+Iron gray/Iron gray
CRI:Ra>80/90
Size:342mm*123mm*178mm
Cutout:Ф332mm*112mm
Warranty:3 years
Dimmable Type:TRIAC
APPLICATION:
Living room, bedroom, kitchen, washroom;
School, university, hospital, hotel;
Conference, meeting room, show room, showcase;
Commercial complexes;
Factory, plant, warehouse, office;
Supermarket, department store.
Narrow Trim Multi Directional Grille Light 3X30W
1.Selected LED chip with efficient driver, energy-saving with 50000 hours lifespan
2.PC cover with high transmittance,offering uniform and comfortable light
3.Excellent aluminum reflector offers even and better light color,bringing visual comfort
4.Excellent heat dissipation design for good heat dissipation to extend the lifespan of the lamp
5.Housing material:Aluminum with good performance
6.Powder coated surface treatment is durable and not easy to fall off
7.Narrow trim and window design
APPLICATION:
Living room, bedroom, kitchen, washroom;
School, university, hospital, hotel;
Conference, meeting room, show room, showcase;
Commercial complexes;
Factory, plant, warehouse, office;
Supermarket, department store.
Power:90W
LED SOURCE:Philips COB
Input Voltage:AC220-240V
Beam Angle:15°/20°/30°/36°/45°
CCT:2700K-5000K
Surface Color:White+Iron gray/Black+Iron gray/Iron gray
CRI:Ra>80/90
Size:342mm*123mm*178mm
Cutout:Ф332mm*112mm
Warranty:3 years
Dimmable Type:TRIAC

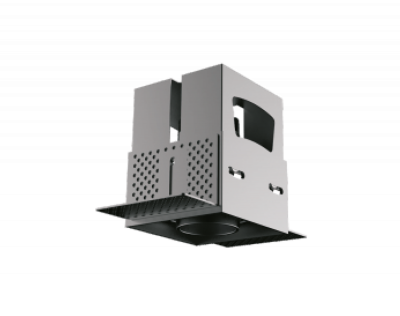

Trimless Multi Directional Grille Light 10W
1.Selected LED chip with efficient driver, energy-saving with 50000 hours lifespan
2.PC cover with high transmittance,offering uniform and comfortable light
3.Excellent aluminum reflector offers even and better light color,bringing visual comfort
4.Excellent heat dissipation design for good heat dissipation to extend the lifespan of the lamp
5.Housing material:Aluminum with good performance
6.Powder coated surface treatment is durable and not easy to fall off
7.Trimless version brings a nicer ceiling
Power: 10W
LED Source: Philips COB
Input Voltage: AC220-240V
Beam Angle: 15°/24°/30°/36°
CCT: 2700K-5000K
Surface Color: Black+Iron gray/White+Iron gray/White +Iron gray
CRI: Ra>80/90
Size: 155mm*85mm*105mm
Cutout：86mm*86mm
Warranty: 3 years
Dimmable Type: TRIAC/1-10V/DALInter your text here
APPLICATION:
Living room, bedroom, kitchen, washroom;
School, university, hospital, hotel;
Conference, meeting room, show room, showcase;
Commercial complexes;
Factory, plant, warehouse, office;
Supermarket, department store.
Trimless Multi Directional Grille Light 15W / 20W
1.Selected LED chip with efficient driver, energy-saving with 50000 hours lifespan
2.PC cover with high transmittance,offering uniform and comfortable light
3.Excellent aluminum reflector offers even and better light color,bringing visual comfort
4.Excellent heat dissipation design for good heat dissipation to extend the lifespan of the lamp
5.Housing material:Aluminum with good performance
6.Powder coated surface treatment is durable and not easy to fall off
7.Trimless version brings a nicer ceiling
APPLICATION:
Living room, bedroom, kitchen, washroom;
School, university, hospital, hotel;
Conference, meeting room, show room, showcase;
Commercial complexes;
Factory, plant, warehouse, office;
Supermarket, department store.
Power: 15W/20W
LED Source: Philips COB
Input Voltage: AC220-240V
Beam Angle: 15°/24°/30°/36°/60°
CCT: 2700K-5000K
Surface Color: Black+Iron gray/White+Iron gray/Iron gray
CRI: Ra>80/90
Size: 197mm*125mm*140mm
Cutout：126mm*126mm
Warranty: 3 years
Dimmable Type: TRIAC/1-10V/DALI
Trimless Multi Directional Grille Light 30W
1.Selected LED chip with efficient driver, energy-saving with 50000 hours lifespan
2.PC cover with high transmittance,offering uniform and comfortable light
3.Excellent aluminum reflector offers even and better light color,bringing visual comfort
4.Excellent heat dissipation design for good heat dissipation to extend the lifespan of the lamp
5.Housing material:Aluminum with good performance
6.Powder coated surface treatment is durable and not easy to fall off
7.Trimless version brings a nicer ceiling
APPLICATION:
Living room, bedroom, kitchen, washroom;
School, university, hospital, hotel;
Conference, meeting room, show room, showcase;
Commercial complexes;
Factory, plant, warehouse, office;
Supermarket, department store.
Power: 30W
LED Source:Philips COB
Input Voltage: AC220-240V
Beam Angle: 15°/20°/30°/36°/45°
CCT: 2700K-5000K
Surface Color:Black+Iron gray /White+Iron gray/Iron gray
CRI: Ra>80/90
Size: 197mm*125mm*140mm
Cutout: 126mm*126mm
Warranty: 3 years
Dimmable Type: TRIAC/1-10V/DALI
Trimless Multi Directional Grille Light 2X20W
1.Selected LED chip with efficient driver, energy-saving with 50000 hours lifespan
2.PC cover with high transmittance,offering uniform and comfortable light
3.Excellent aluminum reflector offers even and better light color,bringing visual comfort
4.Excellent heat dissipation design for good heat dissipation to extend the lifespan of the lamp
5.Housing material:Aluminum with good performance
6.Powder coated surface treatment is durable and not easy to fall off
7.Trimless version brings a nicer ceiling
Power: 20W
LED Source:Philips COB
Input Voltage: AC220-240V
Beam Angle: 10°/15°/24°/30°/36°
CCT: 2700K-5000K
Surface Color: Black +Iron gray/White +Iron gray/Iron gray
CRI: Ra>80/90
Size: 237mm*85mm*135mm
Cutout：162mm*82mm
Warranty: 3 years
Dimmable Type: TRIAC
APPLICATION:
Living room, bedroom, kitchen, washroom;
School, university, hospital, hotel;
Conference, meeting room, show room, showcase;
Commercial complexes;
Factory, plant, warehouse, office;
Supermarket, department store.
Trimless Multi Directional Grille Light 2X15W / 20W
1.Selected LED chip with efficient driver, energy-saving with 50000 hours lifespan
2.PC cover with high transmittance,offering uniform and comfortable light
3.Excellent aluminum reflector offers even and better light color,bringing visual comfort
4.Excellent heat dissipation design for good heat dissipation to extend the lifespan of the lamp
5.Housing material:Aluminum with good performance
6.Powder coated surface treatment is durable and not easy to fall off
7.Trimless version brings a nicer ceiling
APPLICATION:
Living room, bedroom, kitchen, washroom;
School, university, hospital, hotel;
Conference, meeting room, show room, showcase;
Commercial complexes;
Factory, plant, warehouse, office;
Supermarket, department store.
Power: 30W/40W
LED Source: Philips COB
Input Voltage: AC220-240V
Beam Angle: 15°/24°/30°/36°/60°
CCT: 2700K-5000K
Surface Color: Black +Iron gray/White+Iron gray/Iron gray
CRI: Ra>80/90
Size: 317mm*125mm*175mm
Cutout: 246mm*126mm
Warranty: 3 years
Dimmable Type: TRIAC
Trimless Multi Directional Grille Light 2X30W
1.Selected LED chip with efficient driver, energy-saving with 50000 hours lifespan
2.PC cover with high transmittance,offering uniform and comfortable light
3.Excellent aluminum reflector offers even and better light color,bringing visual comfort
4.Excellent heat dissipation design for good heat dissipation to extend the lifespan of the lamp
5.Housing material:Aluminum with good performance
6.Powder coated surface treatment is durable and not easy to fall off
7.Trimless version brings a nicer ceiling
APPLICATION:
Living room, bedroom, kitchen, washroom;
School, university, hospital, hotel;
Conference, meeting room, show room, showcase;
Commercial complexes;
Factory, plant, warehouse, office;
Supermarket, department store.
Power: 60W
LED Source: Philips COB
Input Voltage: AC220-240V
Beam Angle: 15°/20°/30°/36°/45°
CCT: 2700K-5000K
Surface Color: Black+Iron gray/White+ Iron gray/Iron gray
CRI: Ra>80/90
Size: 317mm*125mm*175mm
Cutout: 246mm*126mm
Warranty: 3 years
Dimmable Type: TRIAC
Trimless Multi Directional Grille Light 3X10W
1.Selected LED chip with efficient driver, energy-saving with 50000 hours lifespan
2.PC cover with high transmittance,offering uniform and comfortable light
3.Excellent aluminum reflector offers even and better light color,bringing visual comfort
4.Excellent heat dissipation design for good heat dissipation to extend the lifespan of the lamp
5.Housing material:Aluminum with good performance
6.Powder coated surface treatment is durable and not easy to fall off
7.Trimless version brings a nicer ceiling
APPLICATION:
Living room, bedroom, kitchen, washroom;
School, university, hospital, hotel;
Conference, meeting room, show room, showcase;
Commercial complexes;
Factory, plant, warehouse, office;
Supermarket, department store.
Power: 30W
LED Source: Philips COB
Input Voltage: AC220-240V
Beam Angle: 15°/24°/30°/36°
CCT: 2700K-5000K
Surface Color: Black+Iron gray/White+Iron gray/Iron gray
CRI: Ra>80/90
Size: 315mm*85mm*135mm
Cutout：245mm*86mm
Warranty: 3 years
Dimmable Type: TRIAC
Trimless Multi Directional Grille Light 3X15W / 20W
1.Selected LED chip with efficient driver, energy-saving with 50000 hours lifespan
2.PC cover with high transmittance,offering uniform and comfortable light
3.Excellent aluminum reflector offers even and better light color,bringing visual comfort
4.Excellent heat dissipation design for good heat dissipation to extend the lifespan of the lamp
5.Housing material:Aluminum with good performance
6.Powder coated surface treatment is durable and not easy to fall off
7.Trimless version brings a nicer ceiling
APPLICATION:
Living room, bedroom, kitchen, washroom;
School, university, hospital, hotel;
Conference, meeting room, show room, showcase;
Commercial complexes;
Factory, plant, warehouse, office;
Supermarket, department store.
Power: 45W/60W
LED Source: Philips COB
Input Voltage: AC220-240V
Beam Angle: 15°/24°/30°/36°/60°
CCT: 2700K-5000K
Surface Color:Black+ Iron gray/White+Iron gray/Iron gray
CRI: Ra>80/90
Size: 427mm*125mm*175mm
Cutout: 356mm*126mm
Warranty: 3 years
Dimmable Type: TRIAC
Trimless Multi Directional Grille Light 3X30W
1.Selected LED chip with efficient driver, energy-saving with 50000 hours lifespan
2.PC cover with high transmittance,offering uniform and comfortable light
3.Excellent aluminum reflector offers even and better light color,bringing visual comfort
4.Excellent heat dissipation design for good heat dissipation to extend the lifespan of the lamp
5.Housing material:Aluminum with good performance
6.Powder coated surface treatment is durable and not easy to fall off
7.Trimless version brings a nicer ceiling
APPLICATION:
Living room, bedroom, kitchen, washroom;
School, university, hospital, hotel;
Conference, meeting room, show room, showcase;
Commercial complexes;
Factory, plant, warehouse, office;
Supermarket, department store.
Power: 90W
LED Source: Philips COB
Input Voltage: AC220-240V
Beam Angle: 15°/20°/30°/36°/45°
CCT: 2700K-5000K
Surface Color: Black+Iron gray/White+Iron gray/Iron gray
CRI: Ra>80/90
Size: 427mm*125mm*175mm
Cutout: 356mm*126mm
Warranty: 3 years
Dimmable Type: TRIAC
